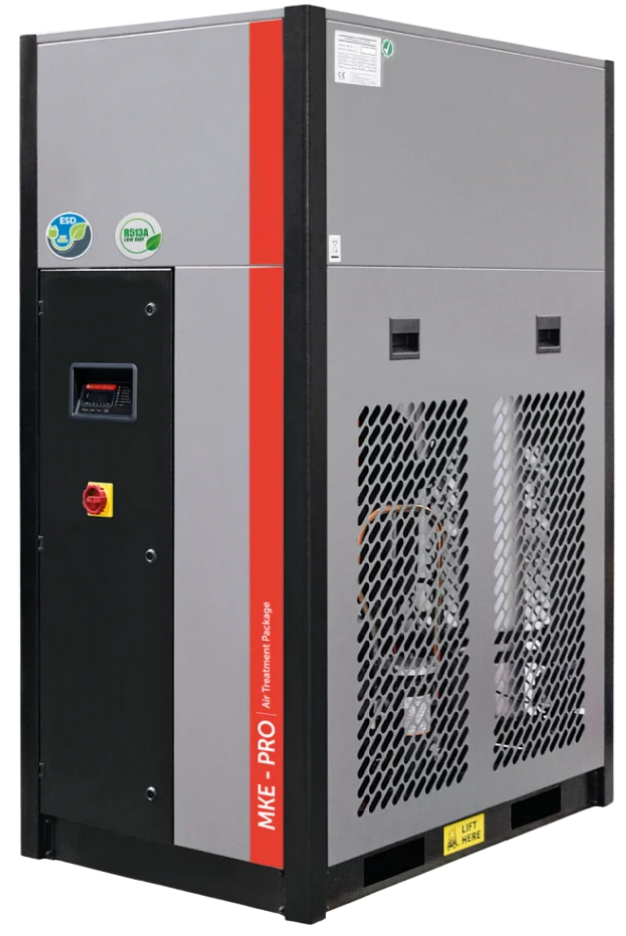

MKE-PRO Refrigerated Compressed Air Dryers
STES supplies the MKE-PRO range of refrigerated compressed air dryers, combining digital-cycling technology with integrated compressed air filtration in one compact package. Available from 22 to 817 CFM, the range covers smaller workshop compressors through to larger industrial compressed air systems.
Prices from £640 + VAT including UK mainland delivery. UK Stock | 22–817 CFM | Integrated Filtration | 1–2 Day Delivery
MKE-PRO Key Features:
Digital-cycling refrigerated air dryer
Integrated pre & post compressed air filtration
+3°C pressure dew point
10-year aluminium heat exchanger warranty
Advanced Digi-Pro digital controller

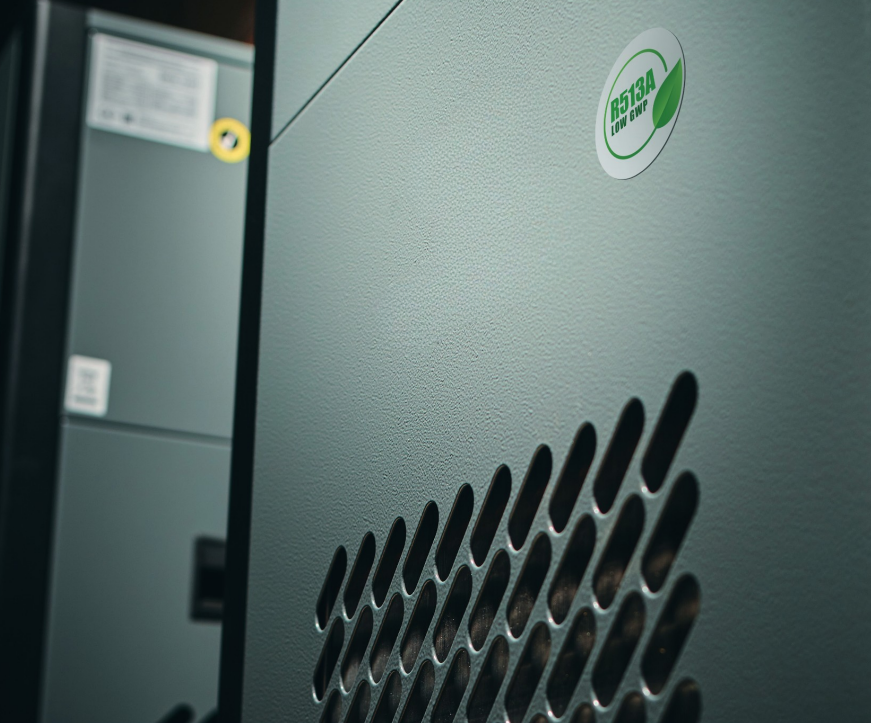

R513a low-GWP refrigerant
ISO 7183 compliant
Maximum working pressure up to 16 bar
Maximum inlet air temperature 60°C
Maximum ambient temperature 50°C
Automatic condensate management
Electronic zero-loss drain as standard on three-phase models
Compact industrial construction
Compressed Air Dryer with Integrated Filtration
Compressed air treatment doesn't stop at removing water vapour.
A conventional installation can require a refrigerated air dryer together with separate upstream and downstream compressed air filters.
The MKE-PRO incorporates pre and post filtration within the dryer package, providing a complete compressed air treatment solution while reducing the number of separate components required.
The benefits include:
Reduced installation footprint
Less additional pipework
Fewer separate filter housings
Simpler installation
Easier equipment selection
Clean, dry compressed air from one compact package

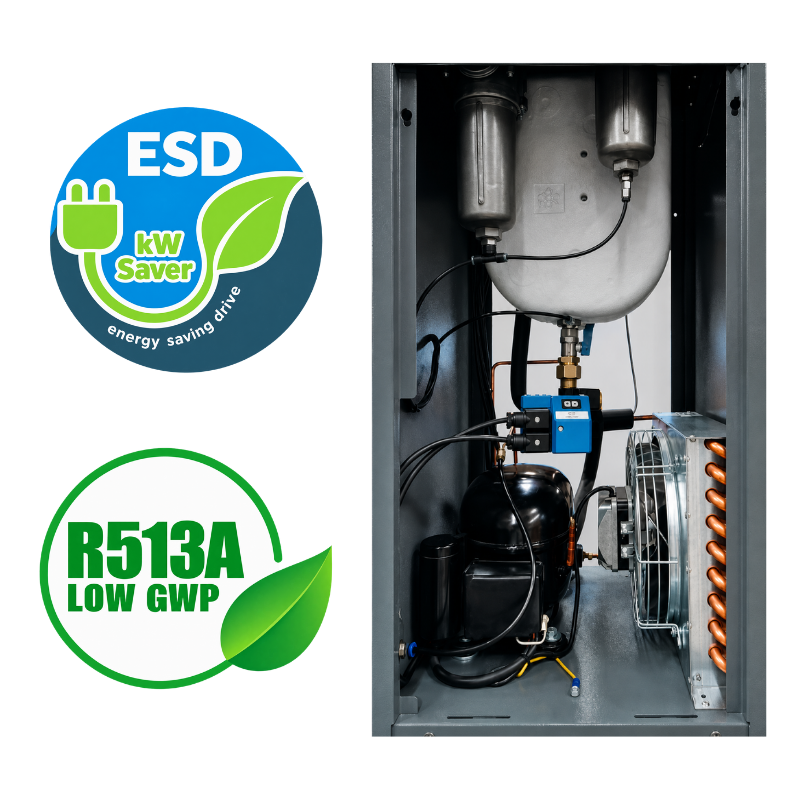

Digital Cycling Refrigerated Air Dryer
The MKE-PRO range uses digital-cycling technology to provide efficient and reliable compressed air drying across varying operating demands.
An aluminium heat exchanger provides effective moisture removal and consistent drying performance, while the Digi-Pro controller provides digital monitoring and control.
The aluminium heat exchanger is backed by a 10-year warranty.
What Size Compressed Air Dryer Do I Need?
Selecting a refrigerated compressed air dryer based on compressor motor kW alone can result in an incorrectly sized unit.
Dryer selection should consider:
Compressor air flow – CFM or m³/min
Operating pressure
Maximum inlet air temperature
Maximum ambient temperature
Compressor operating conditions
If you're unsure which MKE-PRO model you require, send STES your compressor make and model, motor kW, CFM or m³/min and operating pressure.
We'll help select the appropriate refrigerated air dryer for your application.
