Push In Fittings and Tubing
Our push-in fittings and tube range is designed for fast, secure installation across pneumatic, water, food processing and low-pressure fluid transfer systems.
Suitable for compressed air, vacuum, water, liquid handling and general industrial applications, the range includes flexible tube, push-fit connectors, recoil hose, cutting tools and specialist fittings for liquid transfer systems.
Available in both metric and imperial sizes, these products are designed to reduce installation time while maintaining a reliable leak-free connection.
Range of materials including:
Plastic-bodied fittings
Nickel plated brass fittings
Brass fittings
Stainless steel fittings
Polyurethane tube
Nylon tube
Food grade tube
Reinforced liquid tube
Connection types can include:
BSP Parallel (BSPP)
BSP Taper (BSPT)
NPT
Push Fit
Barbed
Push-fit systems are available in a range of materials to suit different environments and applications.

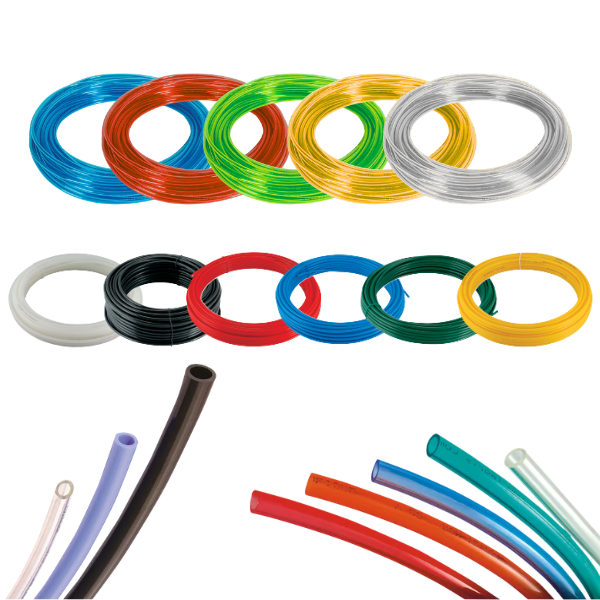

Polyurethane Tubing & Nylon Tubing
Polyurethane and nylon tube is widely used across pneumatic, automation, fluid transfer and industrial control systems.
Polyurethane tube is ideal where flexibility, tight bend radius and kink resistance are important, making it suitable for moving machinery, robotics and applications where repeated flexing is required. Nylon tube offers greater rigidity and higher pressure performance, making it better suited to fuel lines, lubrication systems, pneumatic controls and more demanding industrial applications.
Tubing is commonly available in:
4mm to 16mm outside diameter metric sizes
1/8” to 1/2” imperial tube sizes
Standard and heavy-wall options
Multiple colours for circuit identification
Reinforced and anti-static variants
These tubes are suitable for compressed air, vacuum, oils, fuels, lubricants and general industrial fluid transfer.

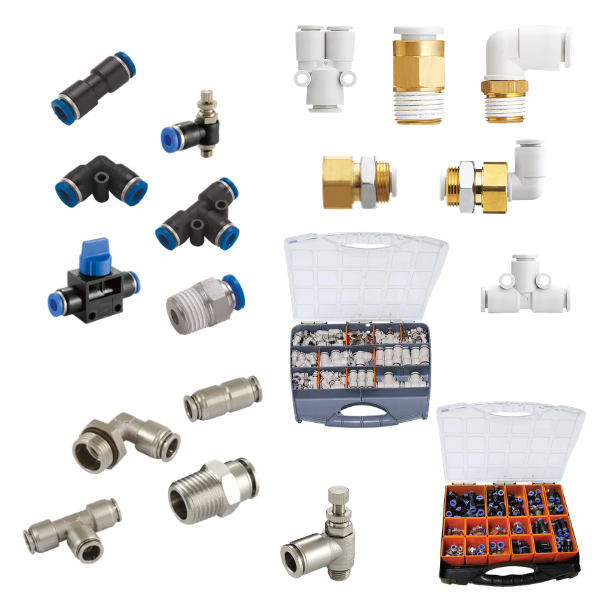

Push Fit Connectors
Plastic and metal push-fit connectors provide a quick and reliable way to connect tube to threaded components, valves, manifolds and equipment.
Available in both lightweight plastic-bodied and more durable metal-bodied designs, these fittings are suitable for compressed air, vacuum and low-pressure fluid systems.
Common fitting styles include:
Straight connectors
Male studs
Female connectors
Elbows
Swivel elbows
Tees
Y fittings
Bulkhead fittings
Blanking plugs
Flow control fittings
Banjo fittings
Reducers
Thread types commonly include:
BSP Parallel (BSPP)
BSP Taper (BSPT)
Metric threads
NPT
UNF
Male threads
Female threads
Swivel thread connections
Tube sizes generally range from 4mm to 16mm metric and 1/8” to 1/2” imperial. Larger sizes can also be supplied on request for specialist applications.
Thread sizes are typically available from M5 up to 1” BSP, with selected metal fittings extending up to 1 1/2” BSP.

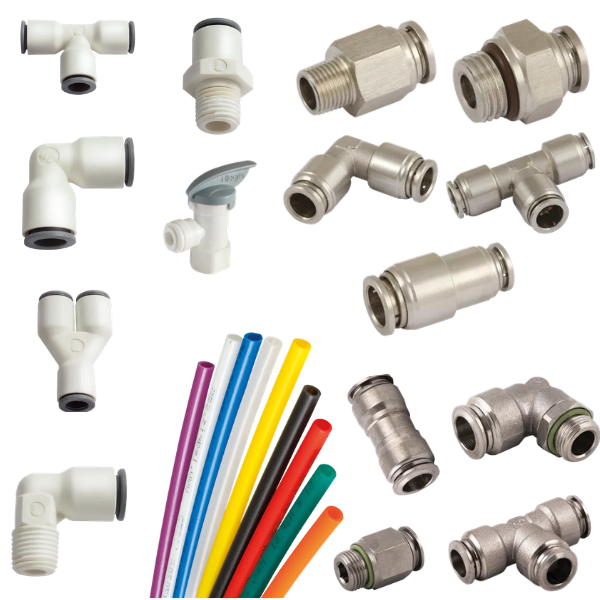

Food Grade Tube & Water/Liquid Fittings
Food grade tube and liquid fittings are designed for applications where cleanliness, hygiene and contamination resistance are essential.
Suitable for food production, beverage systems, water purification, pharmaceutical applications and low-pressure liquid transfer, these products are designed to provide a secure and leak-free connection.
The range includes:
4mm to 16mm outside diameter metric sizes
1/8” to 1/2” imperial tube sizes
Clear, translucent and coloured options
Flexible and reinforced constructions
Straight connectors
Male and female adaptors
Elbows
Tees
Y connectors
Shut-off fittings
Valved connectors
Bulkhead fittings
Hose connectors
Reducers
Thread types commonly include:
BSP Parallel (BSPP)
BSP Taper (BSPT)
Metric threads
NPT
UNF
Male threads
Female threads
Water and liquid fittings are commonly manufactured from plastic, brass or stainless steel materials and are suitable for water, beverages, coolants, mild chemicals and non-aggressive liquids.
Thread sizes are commonly available from M5 up to 1/2”, with selected fittings extending to 1” depending on the material and application. Tube sizes generally range from 4mm to 16mm metric and 1/8” to 1/2” imperial, with larger sizes available on request.

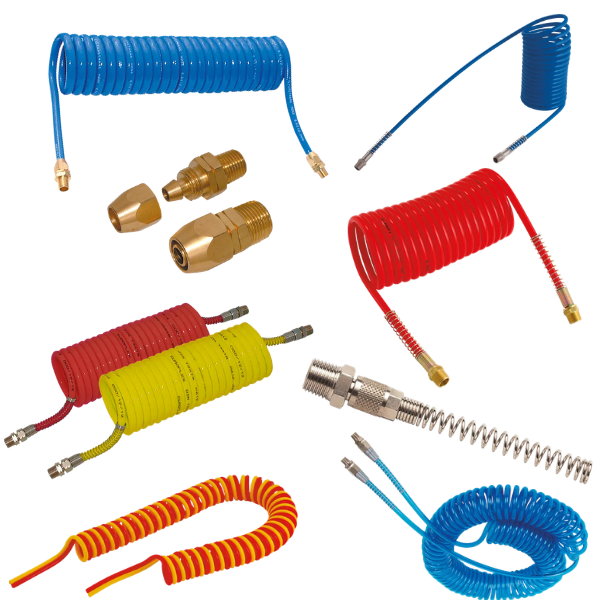

Recoil Tubes
Recoil tubes provide a compact and flexible solution for air tools, workstations and mobile pneumatic equipment.
Designed to retract back into shape after use, recoil tubes help reduce trip hazards and keep work areas tidy.
Common Options include:
Polyurethane recoil hose
Nylon recoil hose
Straight tail ends
Swivel end fittings
Pre-fitted threaded connectors
Different coil lengths and working lengths
Tube sizes are typically available from 5mm up to 12mm outside diameter, with thread sizes generally ranging from 1/8” BSP to 1/2” BSP.

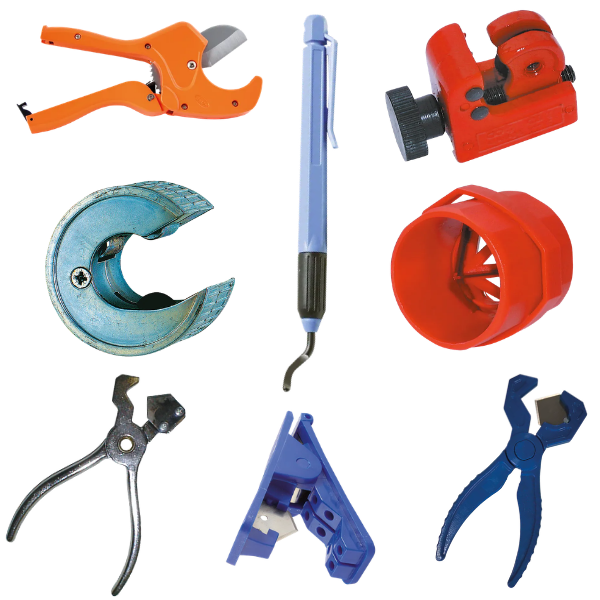

Cutting Tools
Tube cutting tools are designed to provide clean, square cuts on pneumatic and fluid transfer tube.
A clean cut is essential for reliable push-fit connections and helps prevent leaks, tube damage and poor fitting performance.
The range includes:
Hand tube cutters
Heavy-duty tube cutters
Multi-size tube cutters
Tube insert tools
Deburring tools
Hose cutting shears
These tools are suitable for most common tube sizes from 4mm up to 22mm and can be used with polyurethane, nylon and food grade tube.
